TENBOX - EXTERIOR VENETIAN BLINDS EASY AND RELIABLE INSTALLATION SYSTEM
A box for EVB with new properties and a new name TENBOX, which is the third generation of the reliable MKS model

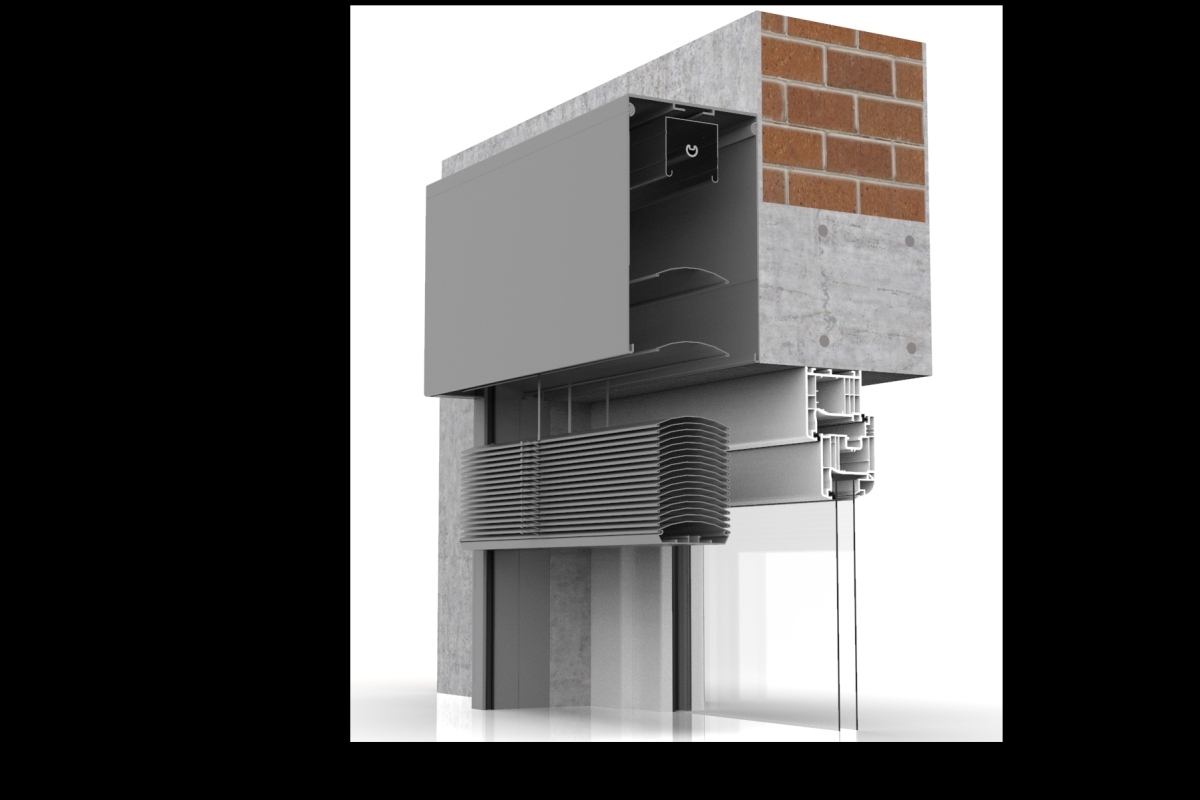

TENBOX Self-supporting system:
• Quick installation, similar to installing roller shutters
• Highly aesthetic

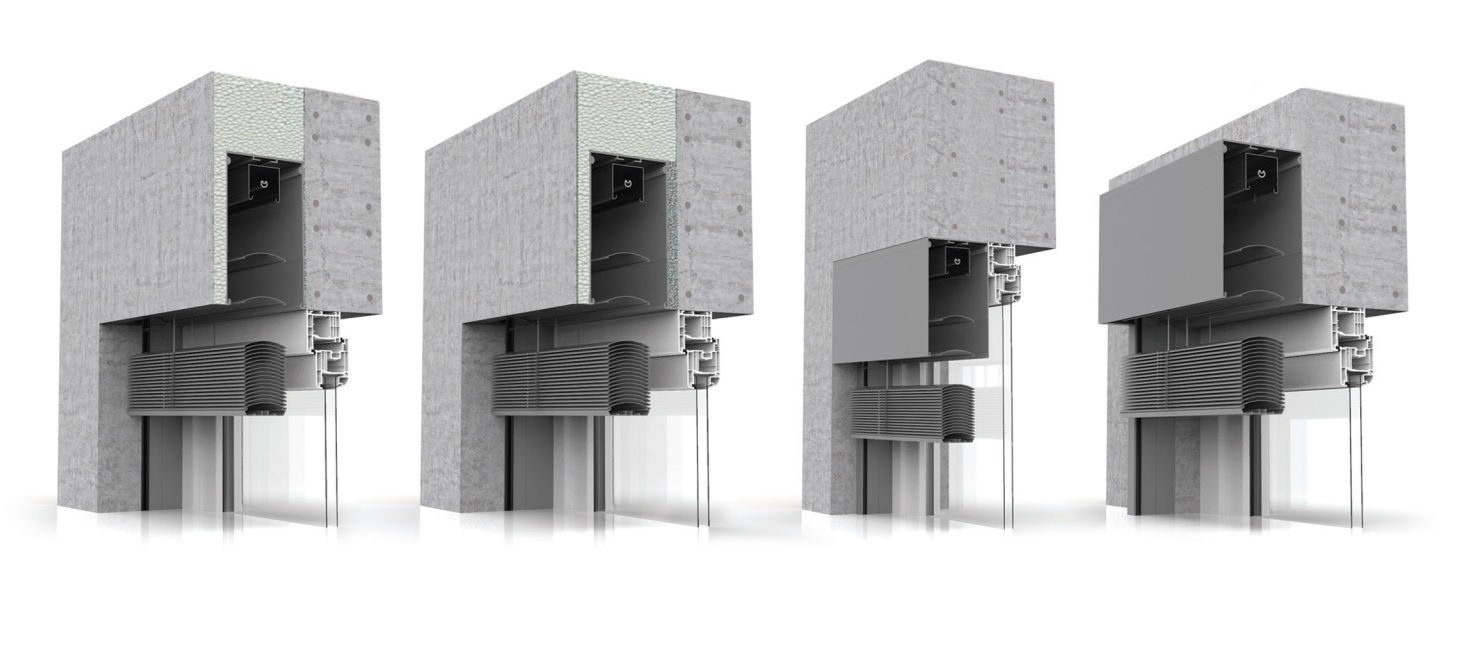

• Flush-mounted and surface-mounted versions
• Many insulation options

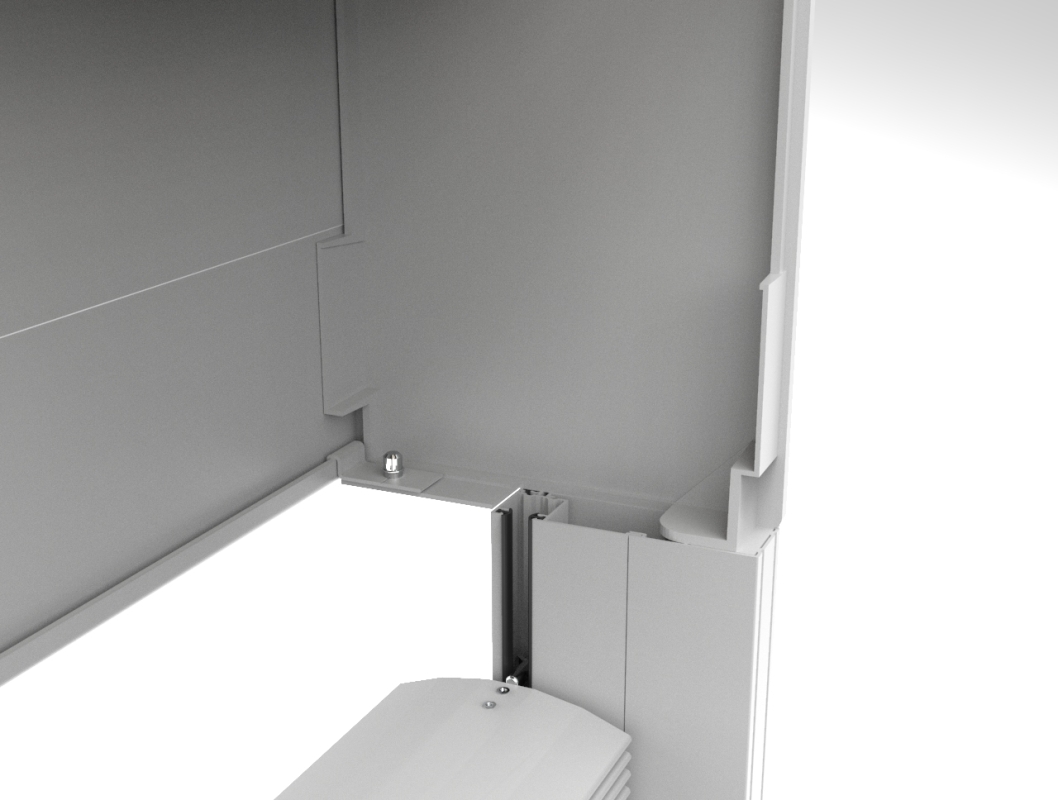

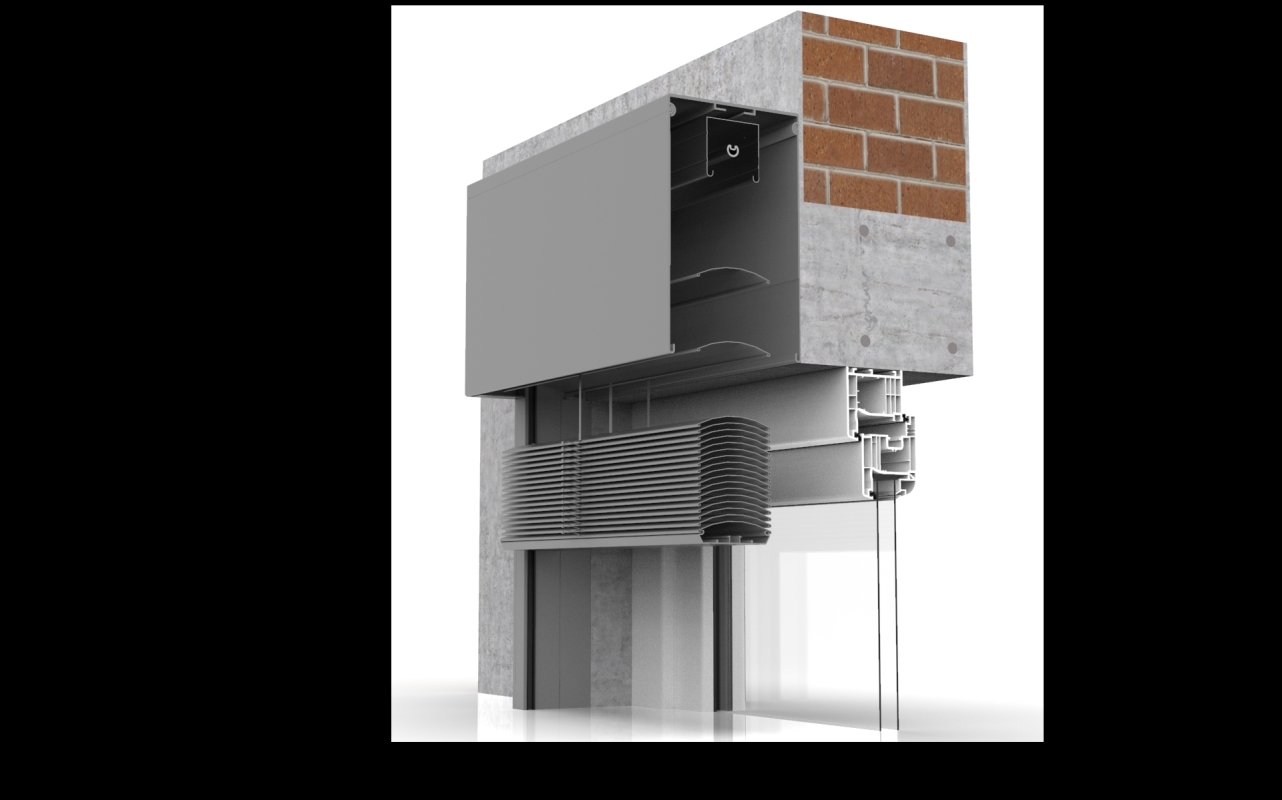

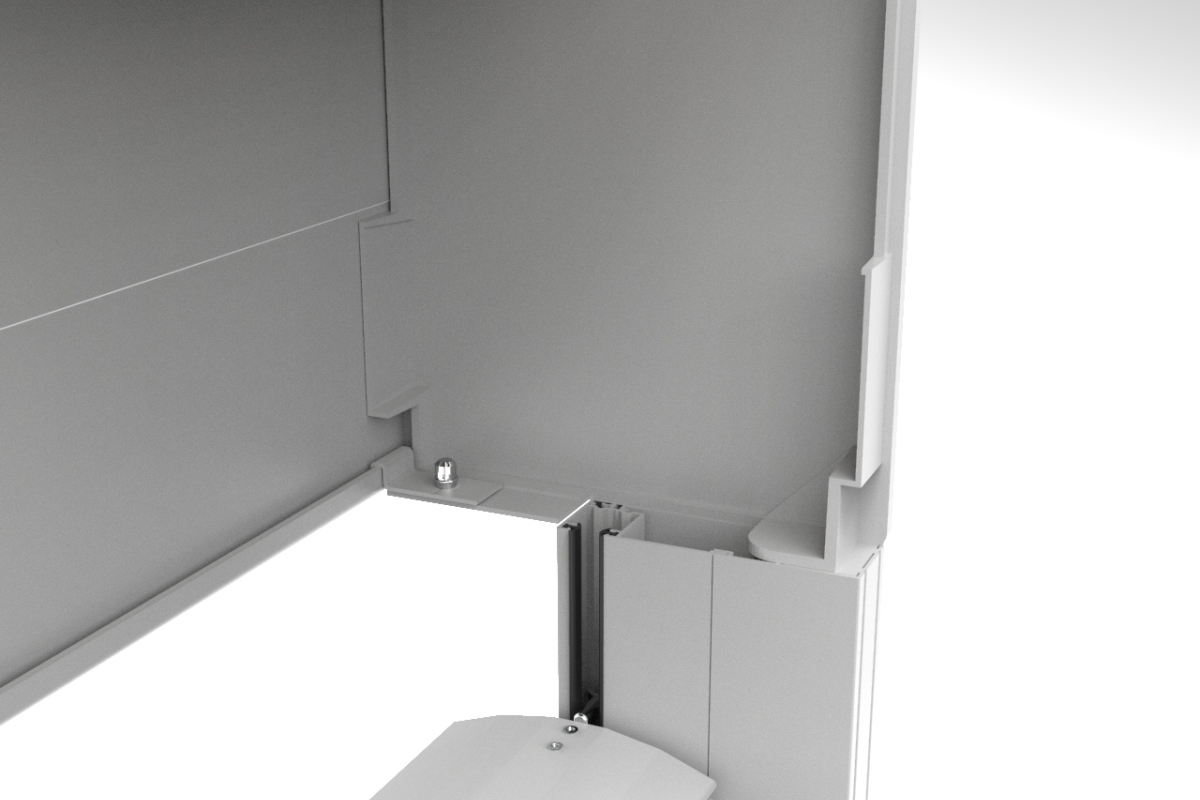

BOX:
• reliable and strong plaster carrier – STYRODUR - on the front of the box
• Aluthermo Quattro 11,2 mm - excellent isolation - in the back of the box
• selection of different box sizes for space optimization (200, 240, 280, 340mm)

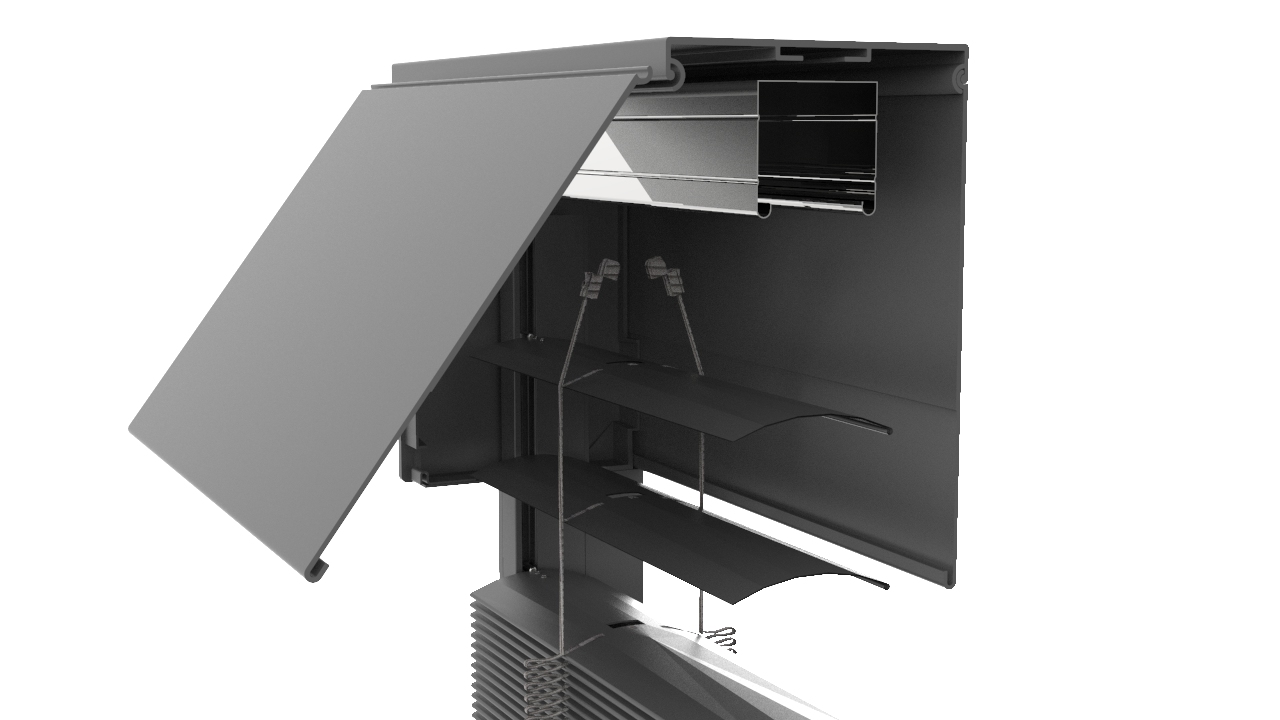

• front inspection flap for easier installation and service
• No visible mounting holes or plugs

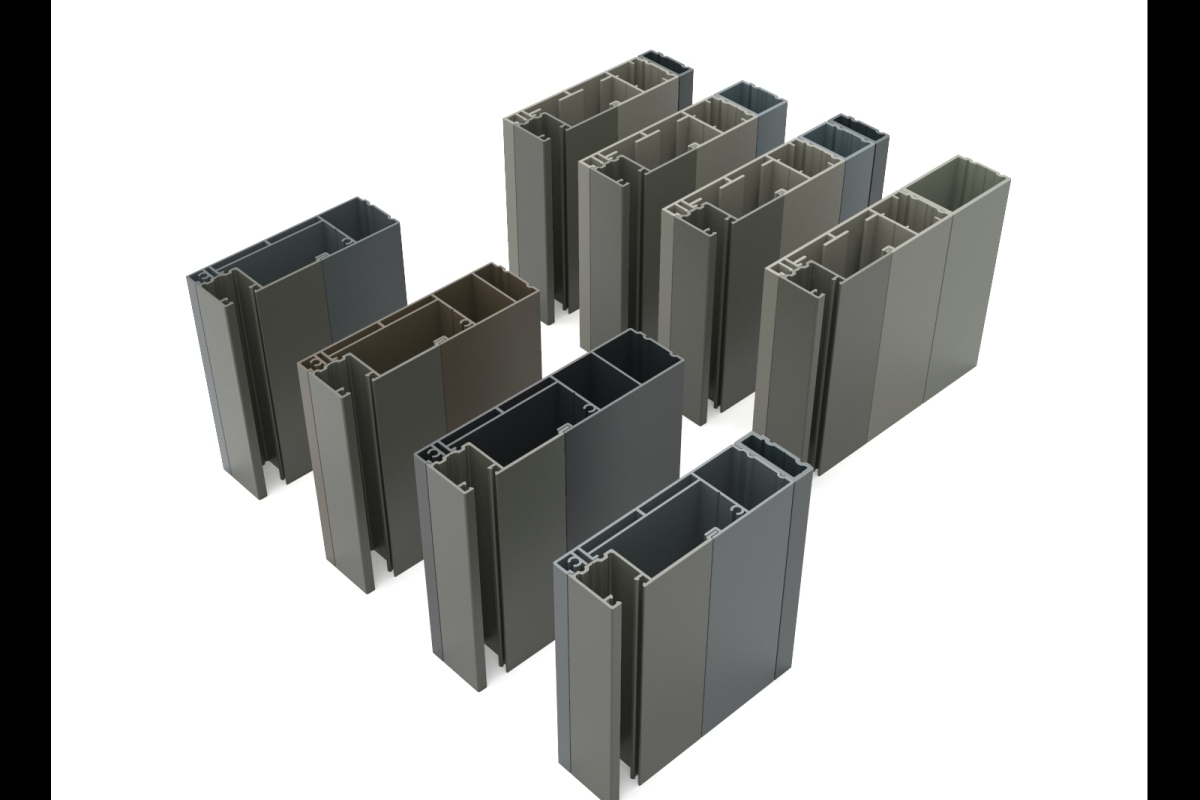

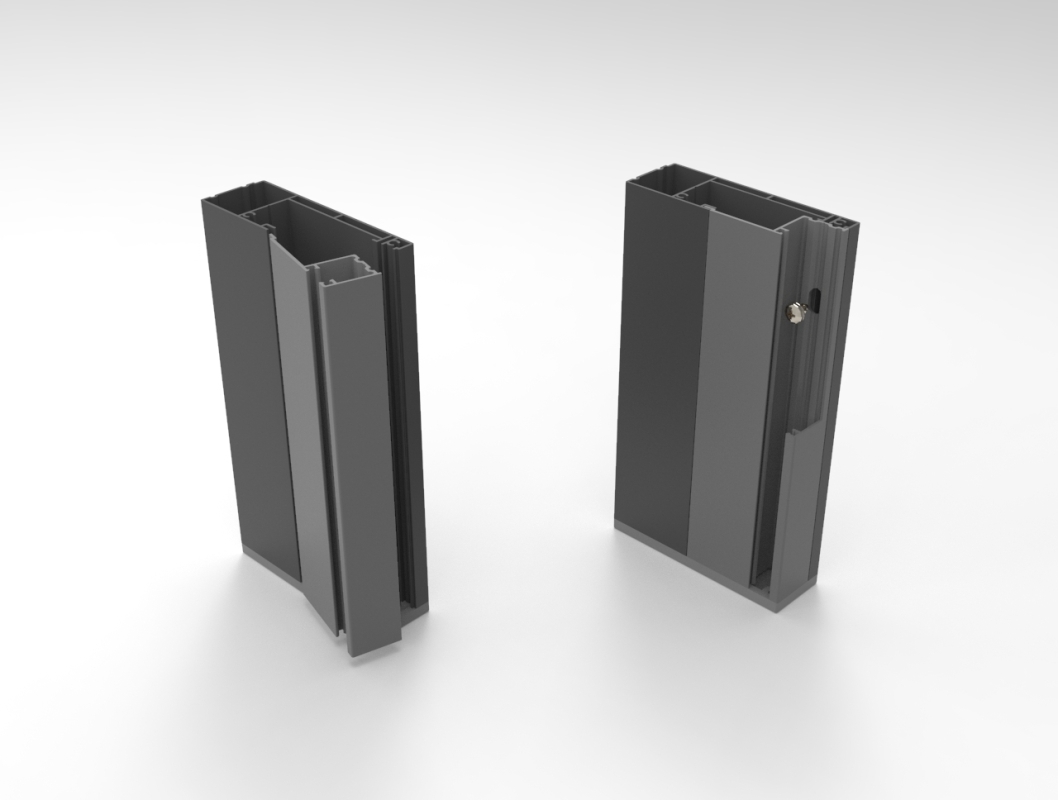

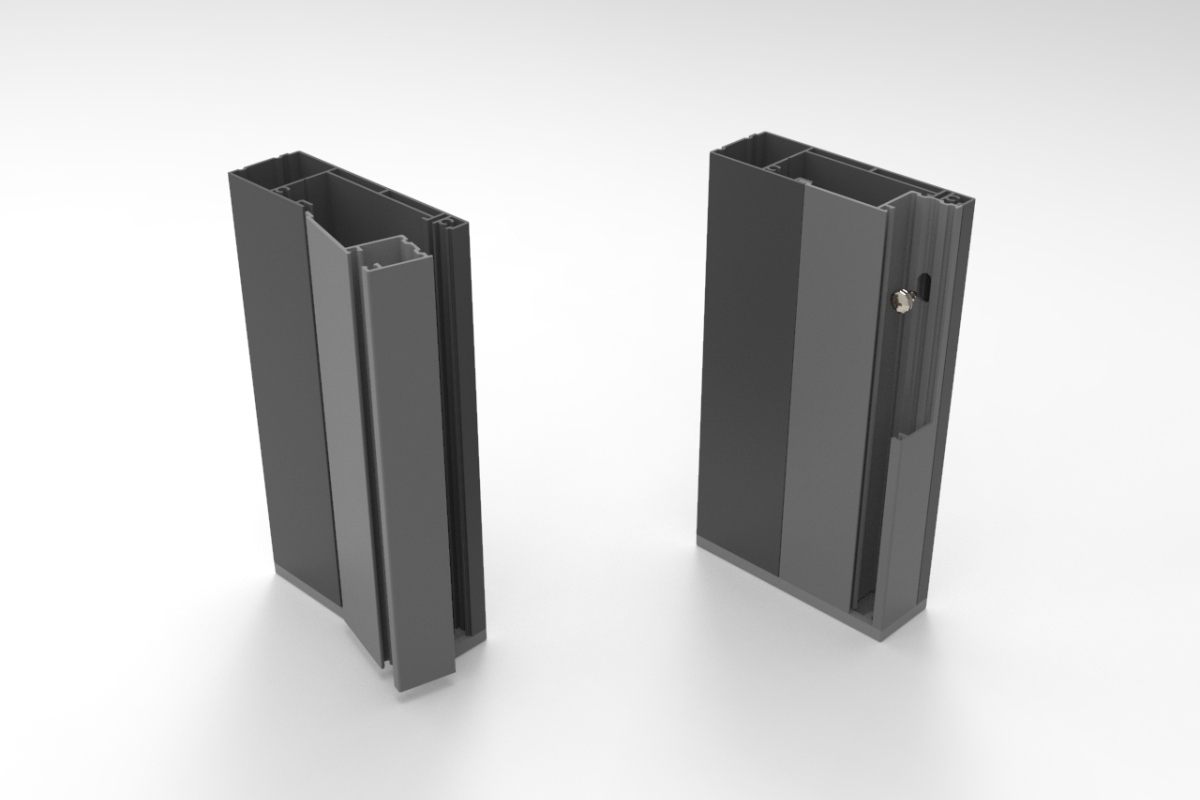

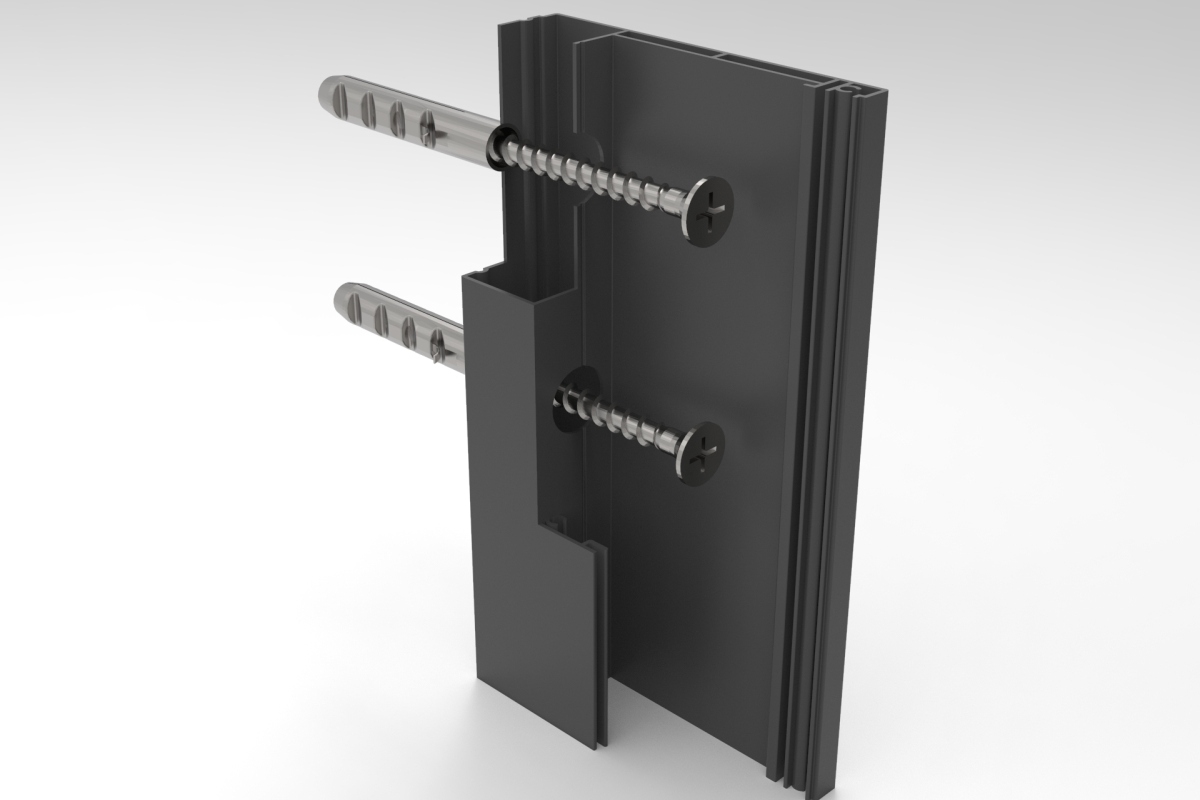

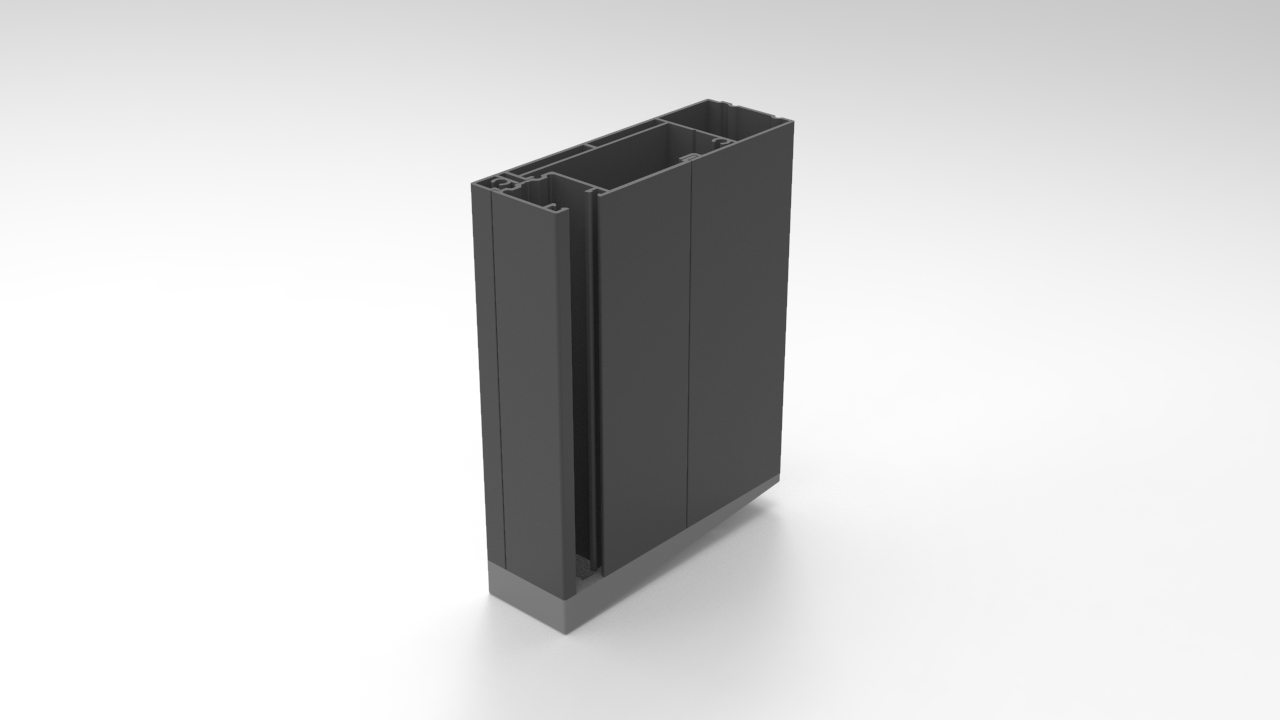

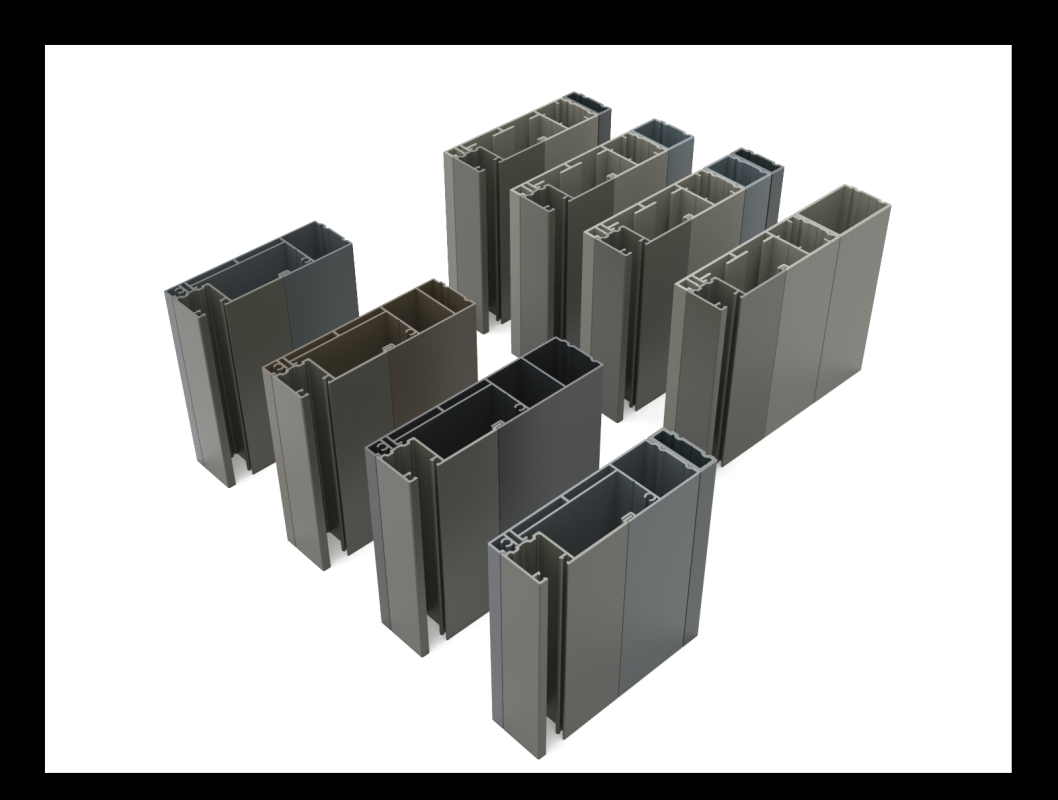

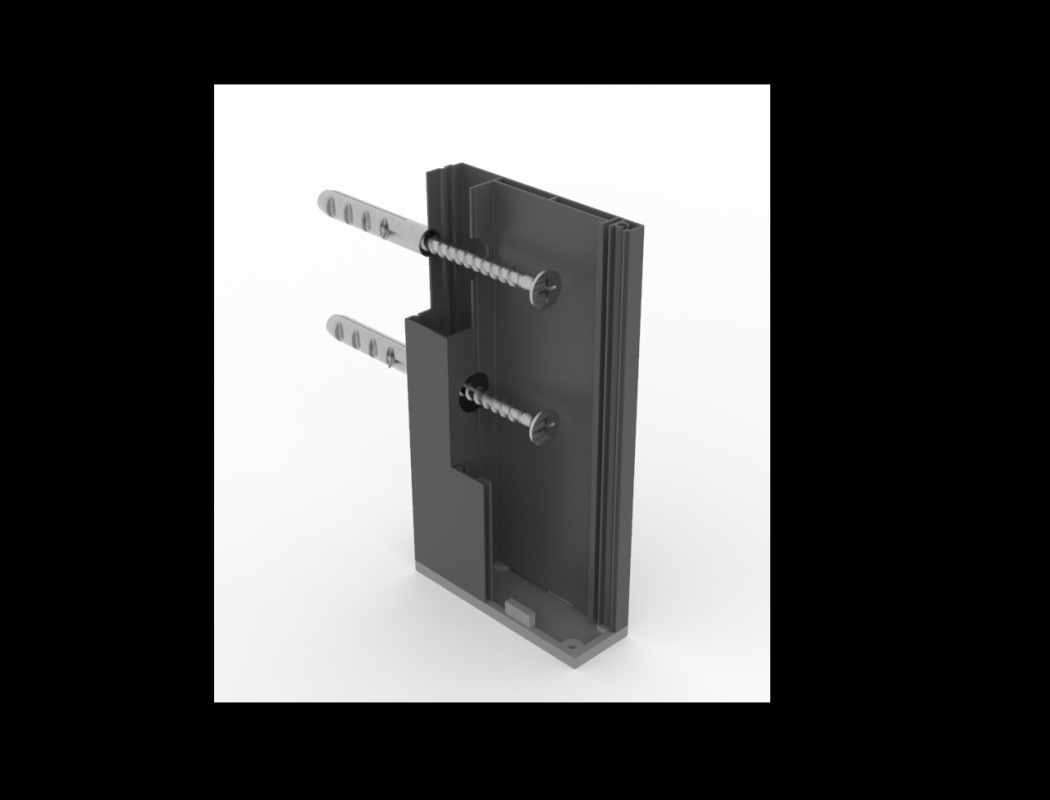

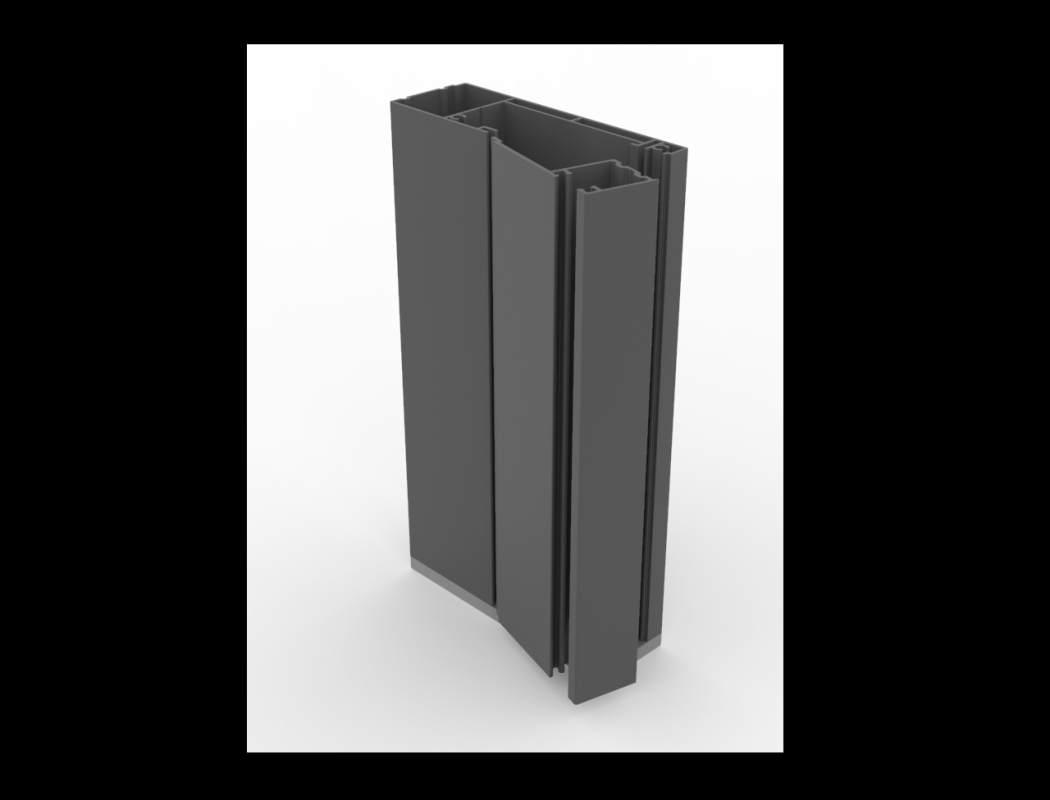

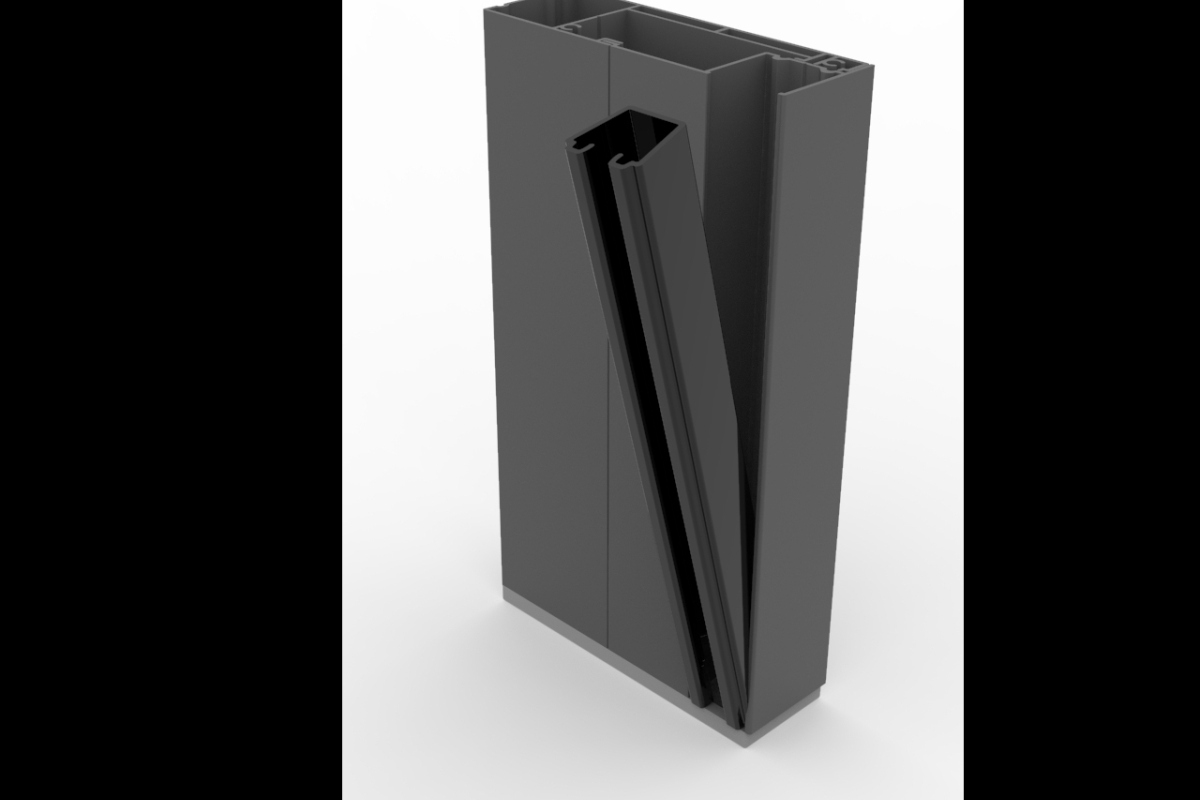

Guide channels:

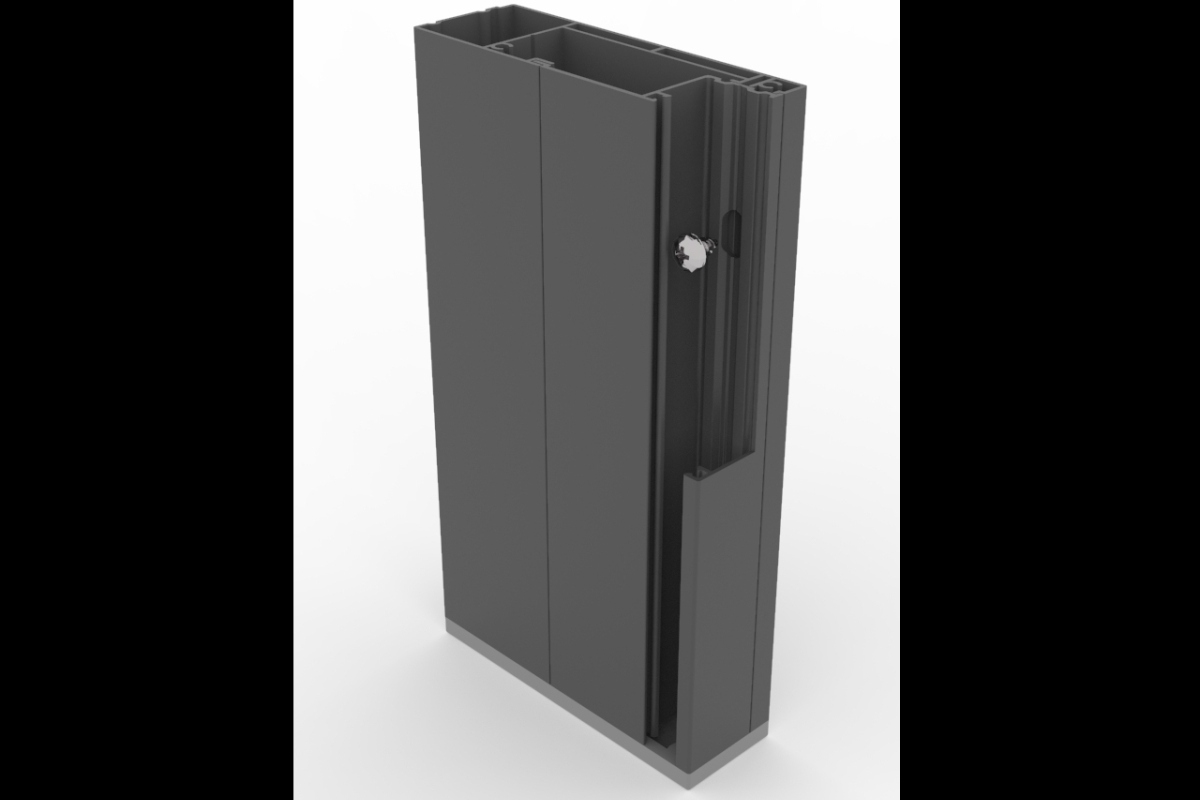

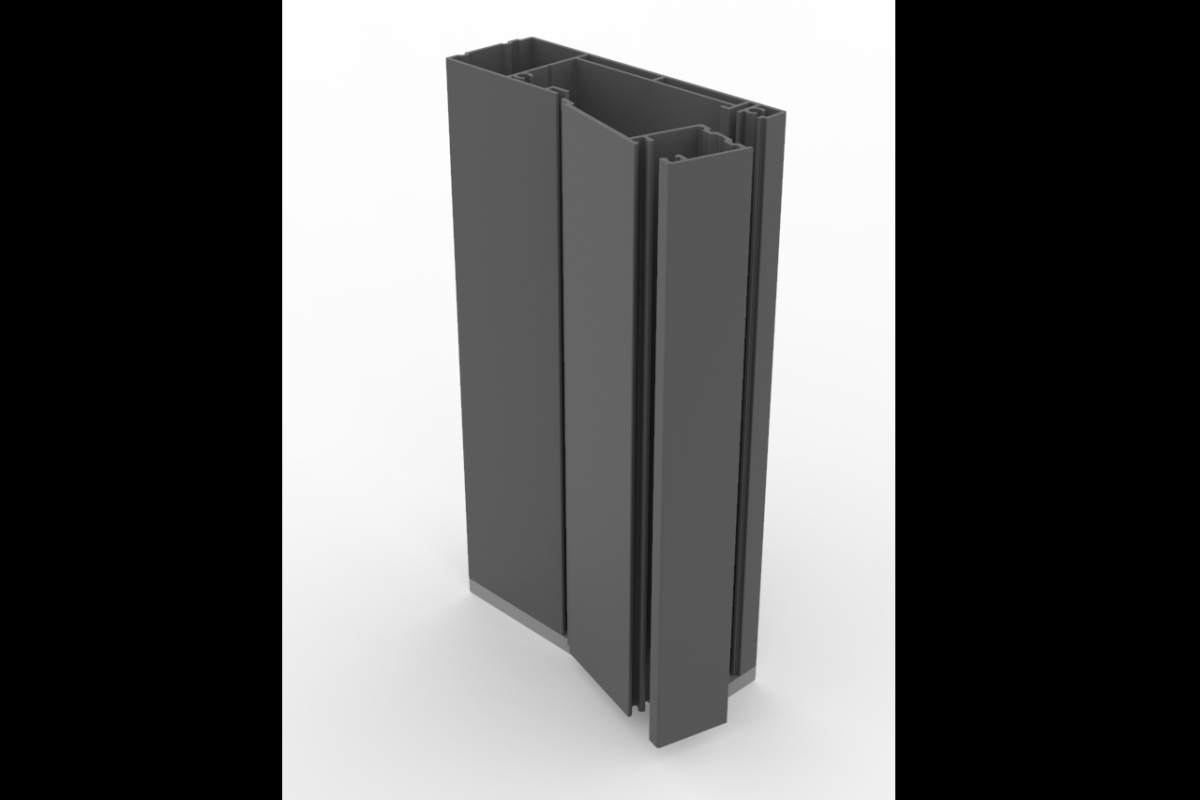

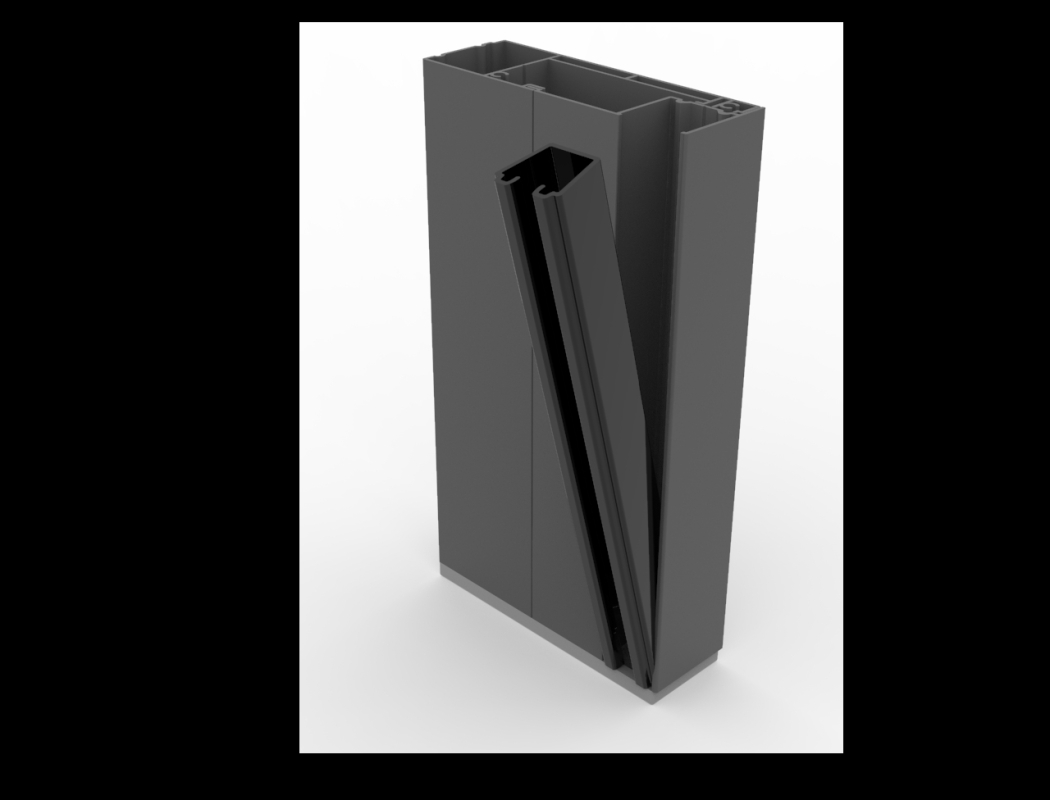

• Flush mounted (with removable insert for revision) and surface-mounted

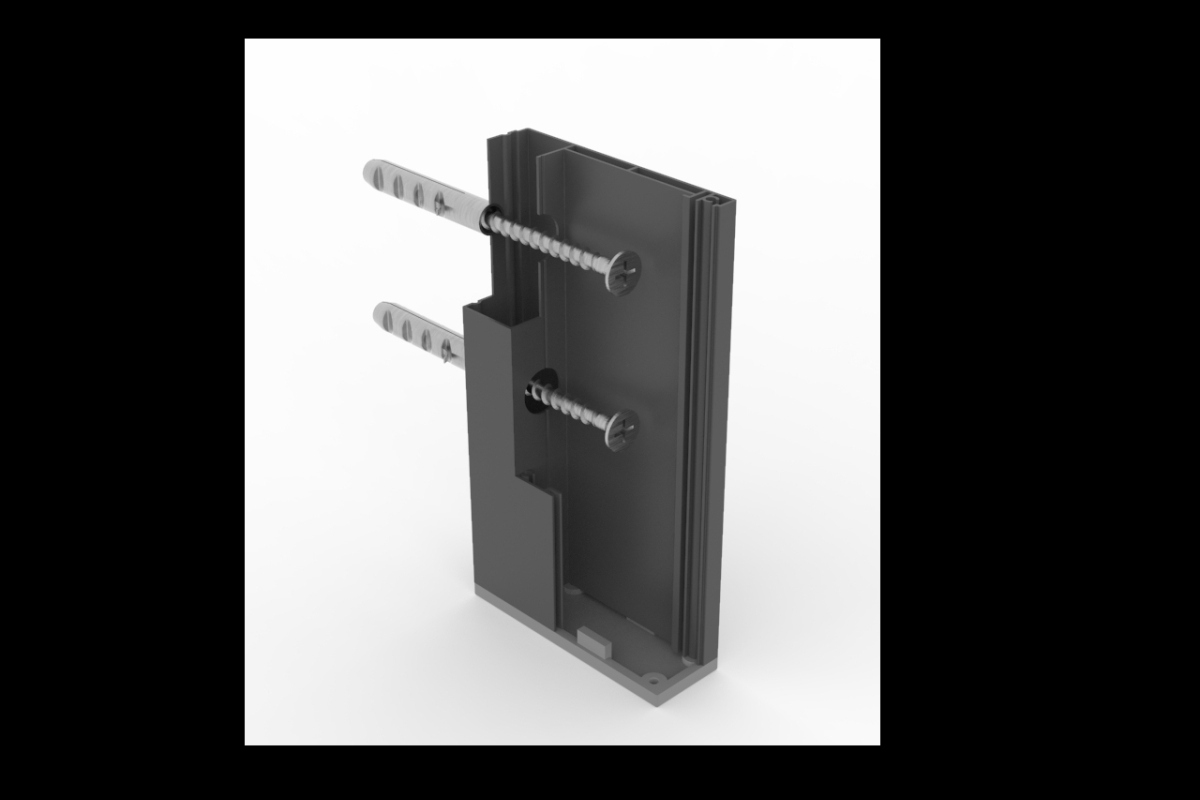

• Pre-drilled
• No visible mounting holes or plugs
• 3 depth options (0, +10, +20mm)

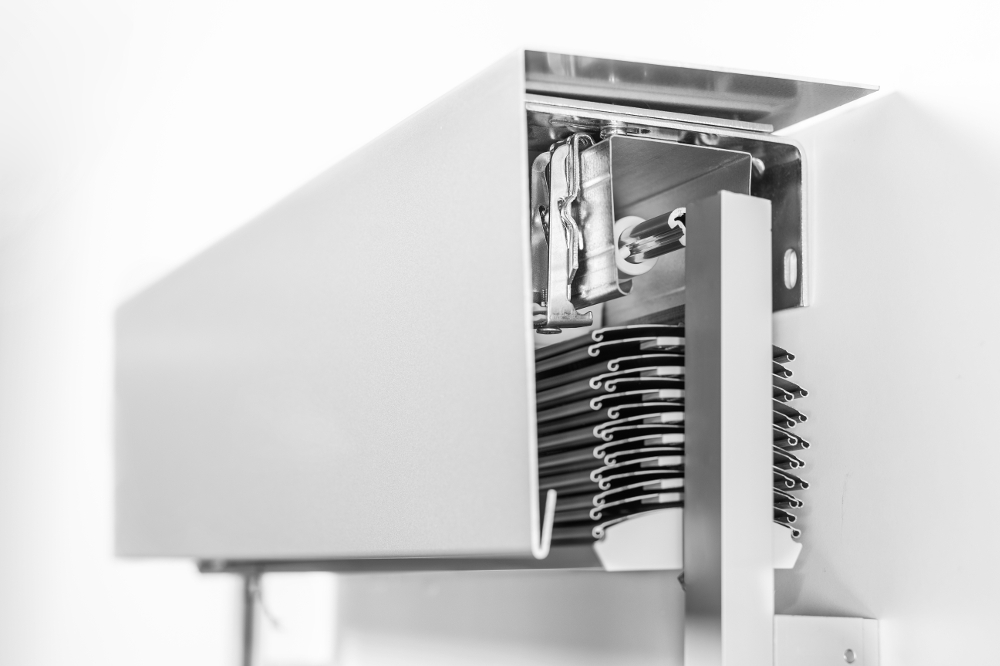

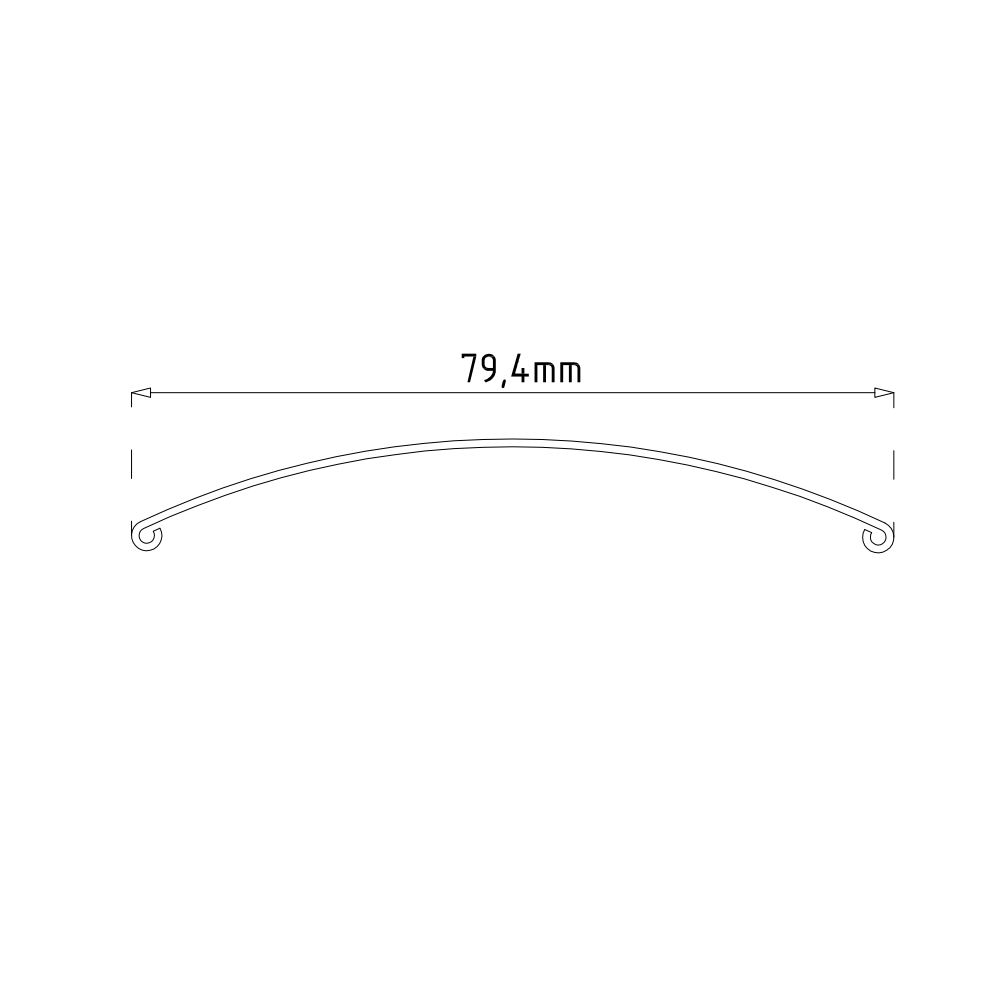

C-80 EVB

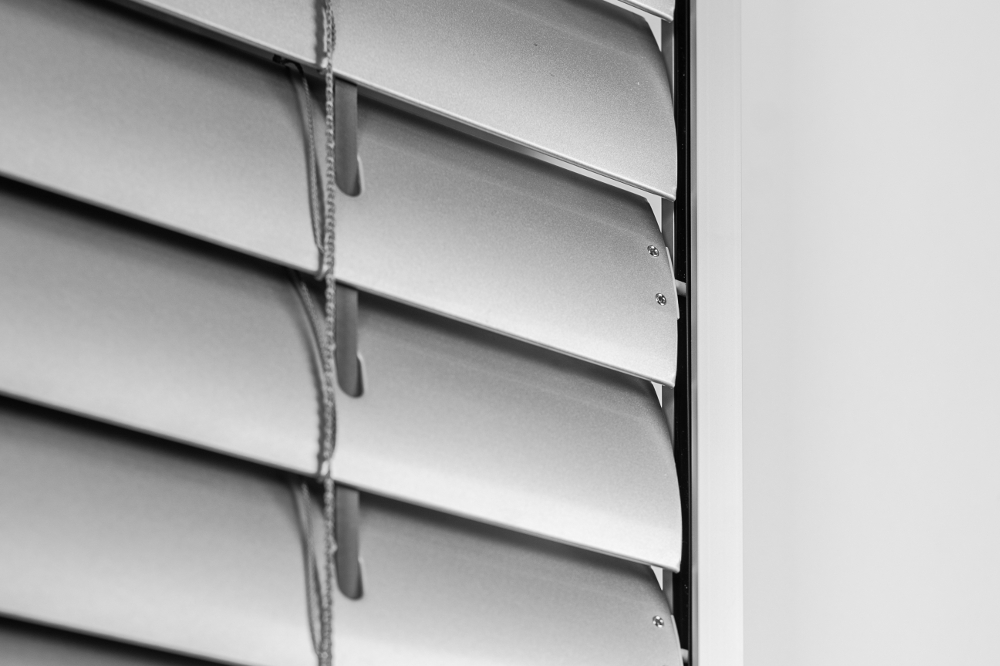

Slat
- tight shutting C-80 profile 0,42 mm thick
- Profile coated with poliester paint - COIL COATING technology
- PVC guide pins riveted to the slat
- Slat tilt 180°
Blind

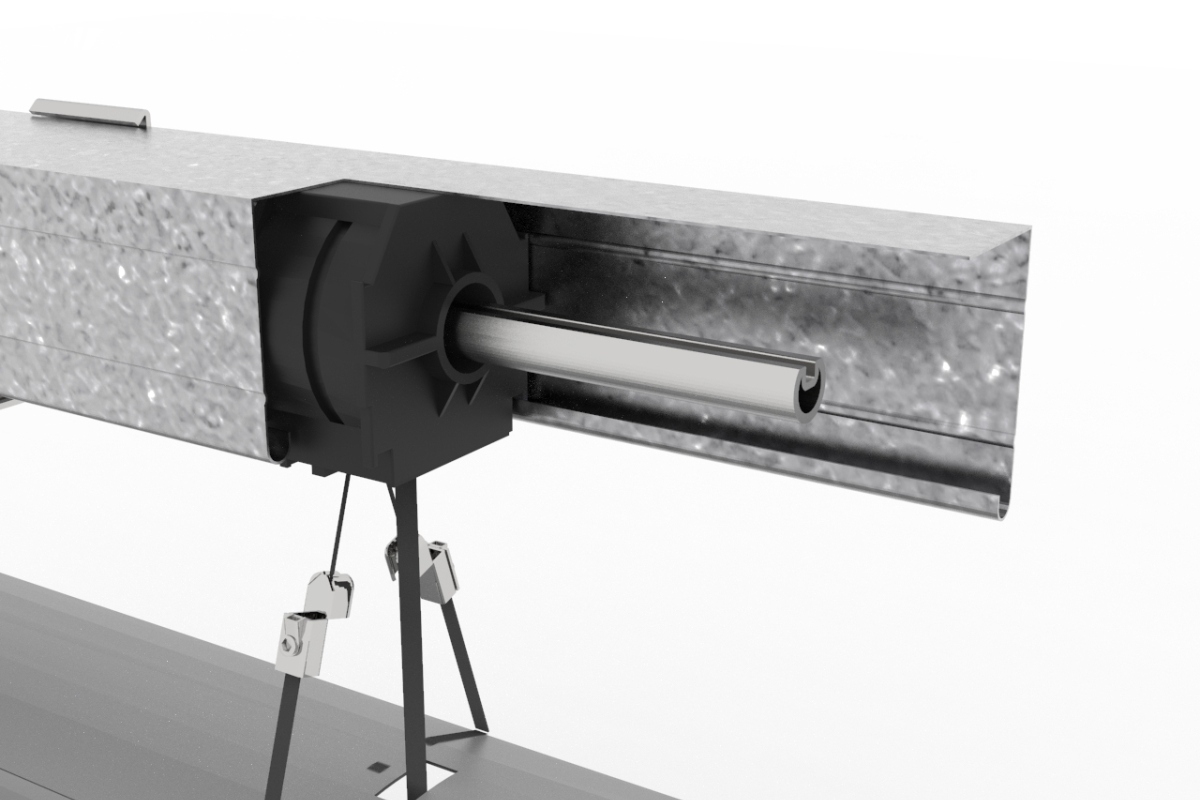

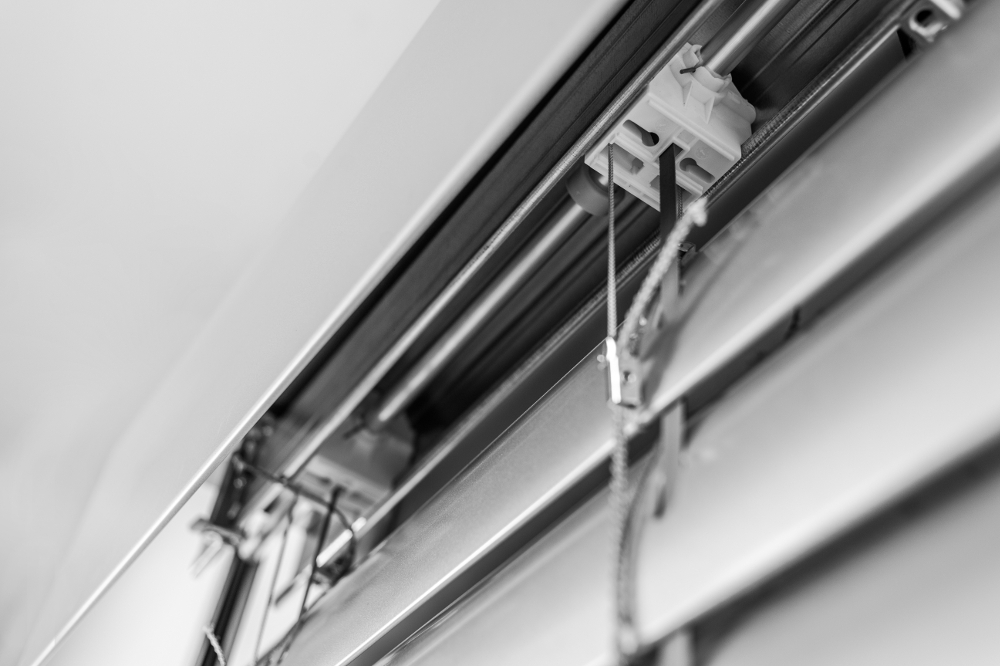

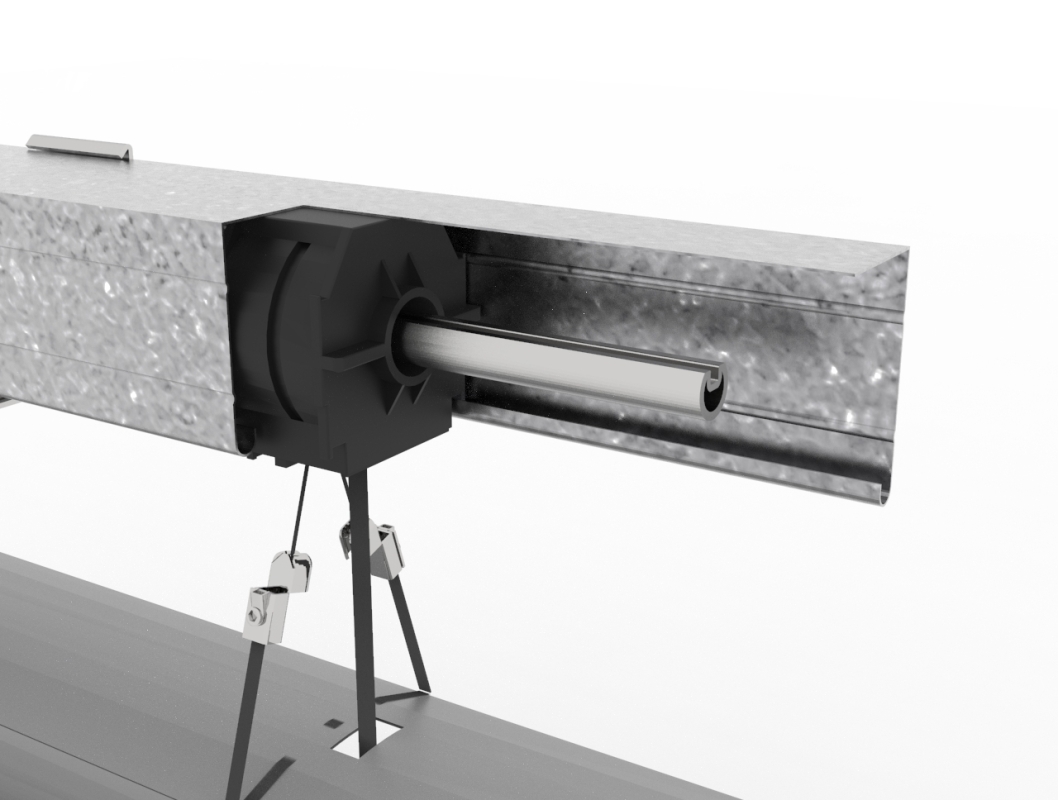

- 58x56 mm galvanized head rail opened from the bottom
- Highest quality control tape - Texband® - 8 mm wide
- Bottom rail, guide channels made of extruded aluminum
- Reliable bearings that control the blind's operation

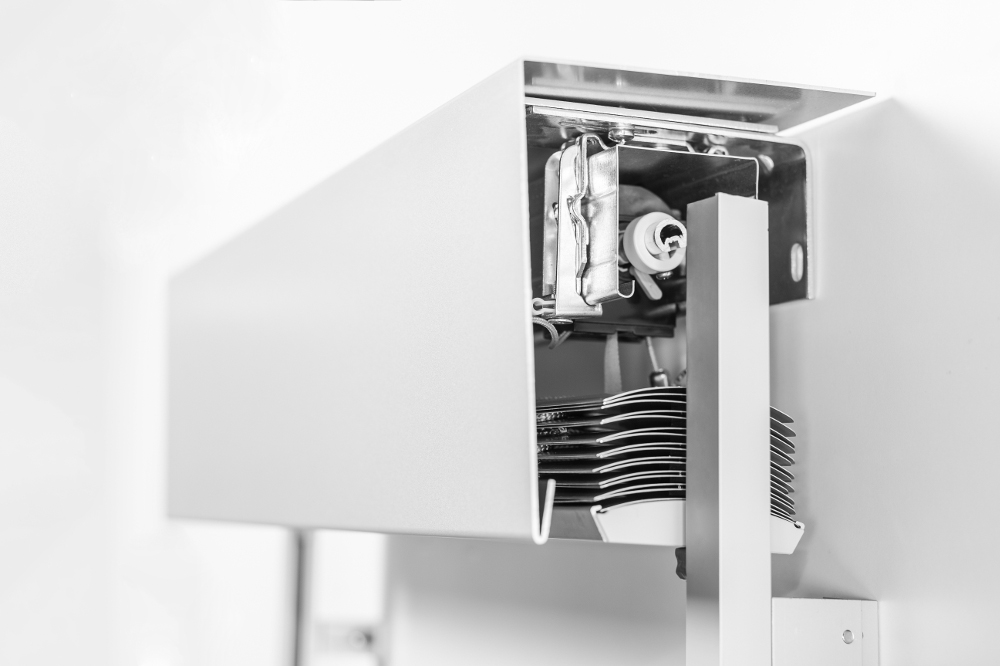

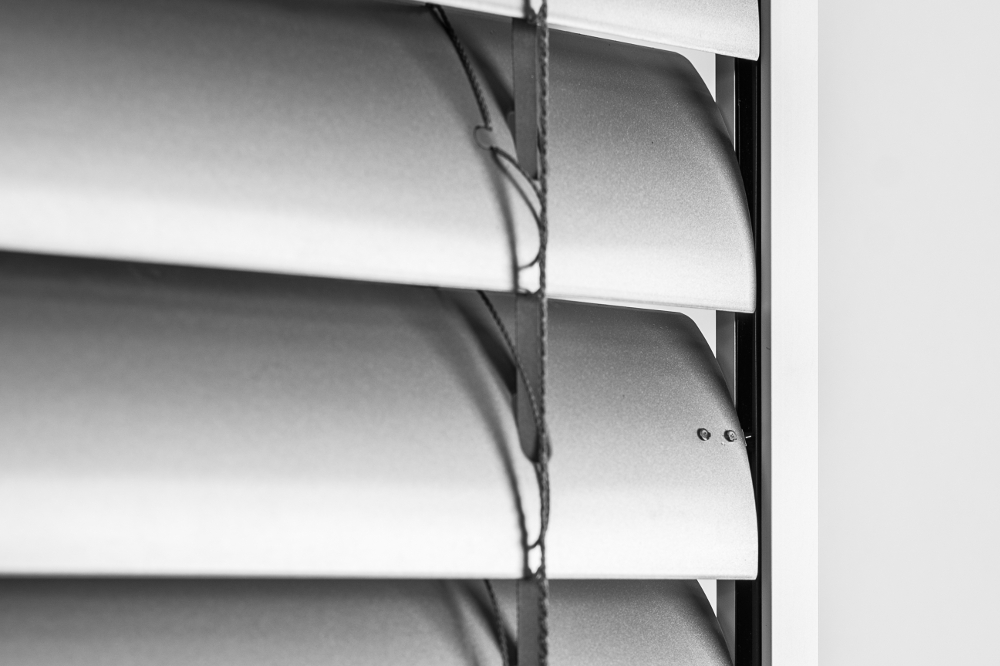

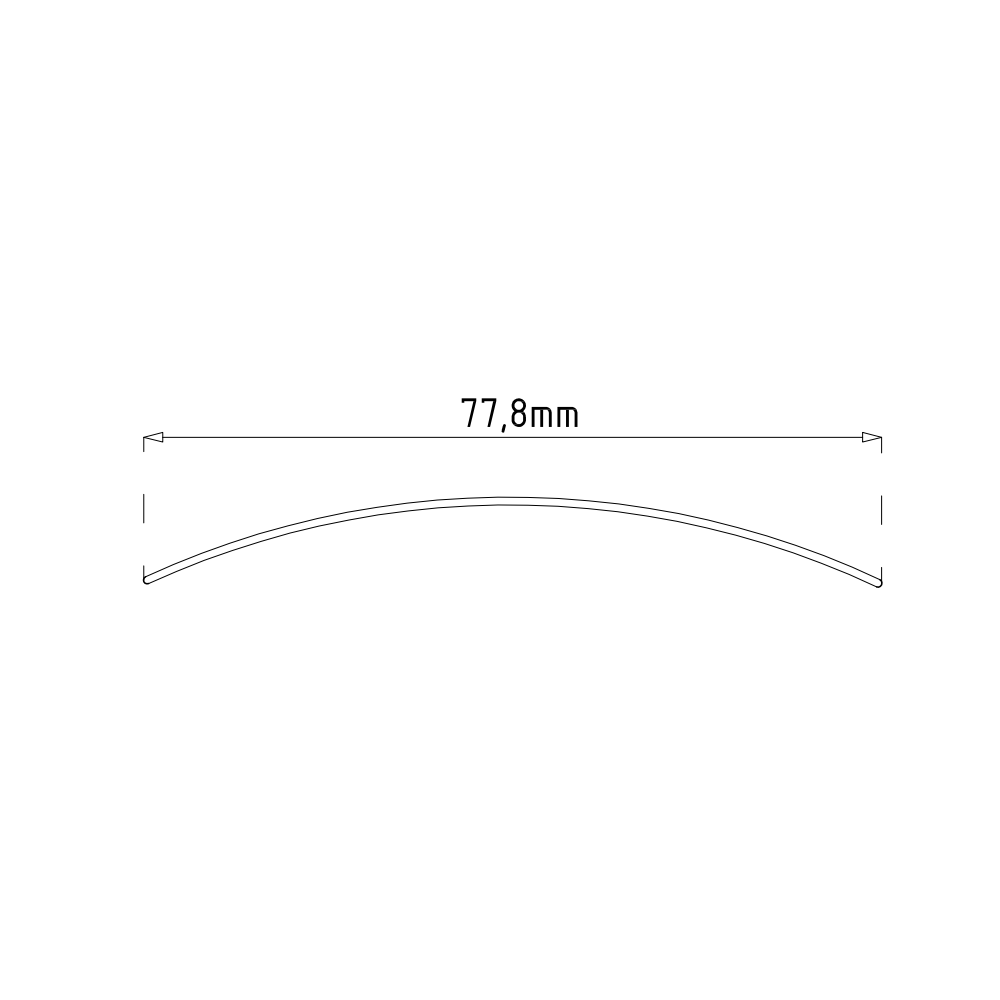

C-80F EVB (FLACH)
- tight shutting C-80F profile 0,42 mm thick
- flat collarless profile - small slat pack when the blind is in upper position
- Profile coated with poliester paint - COIL COATING technology
- steel pins riveted to the slat
- Slat tilt 90°

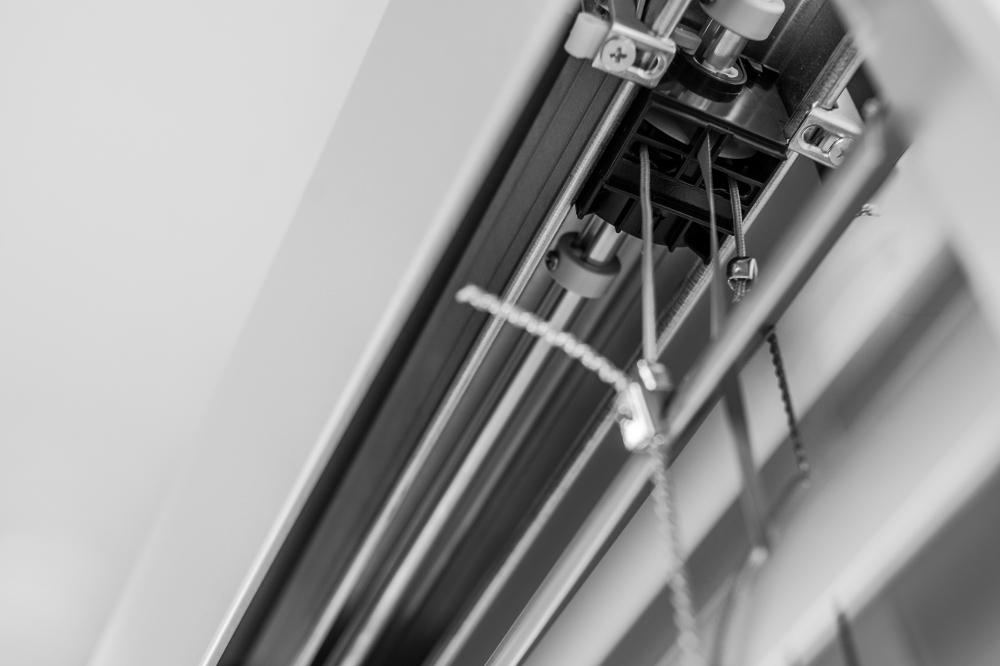

Blind
- 58x56 mm galvanized head rail opened from the bottom
- Highest quality control tape - Texband® - 8 mm wide
- Bottom rail, guide channels made of extruded aluminum
- Reliable bearings that control the blind's operation

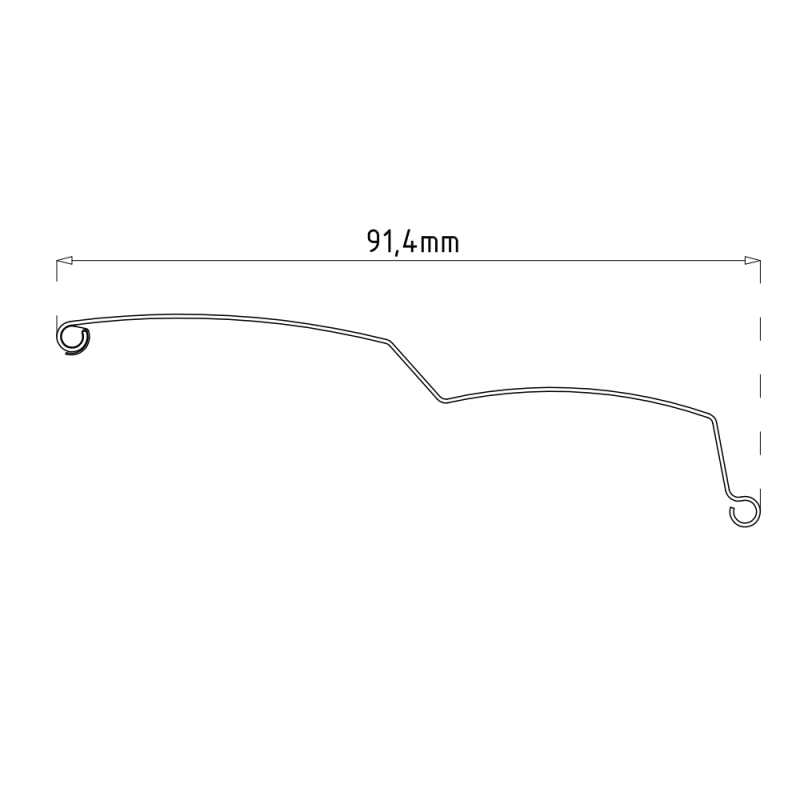

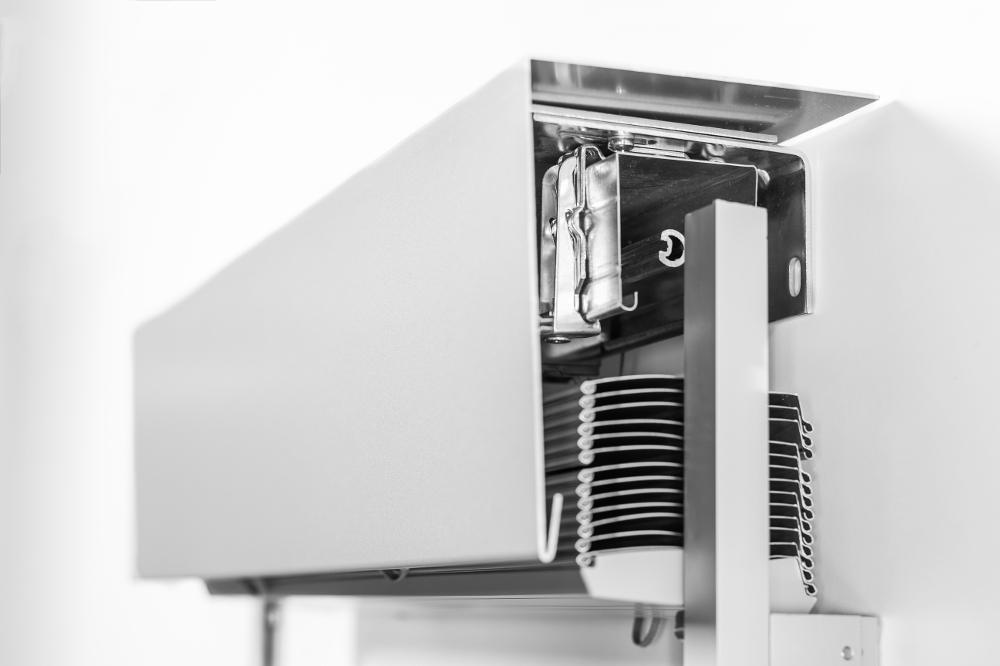

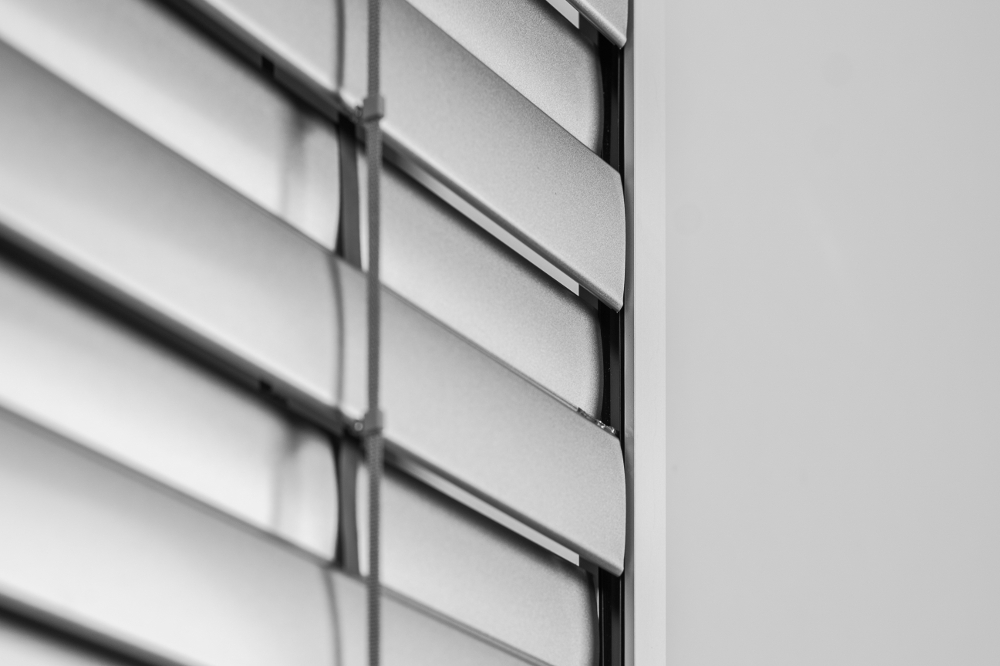

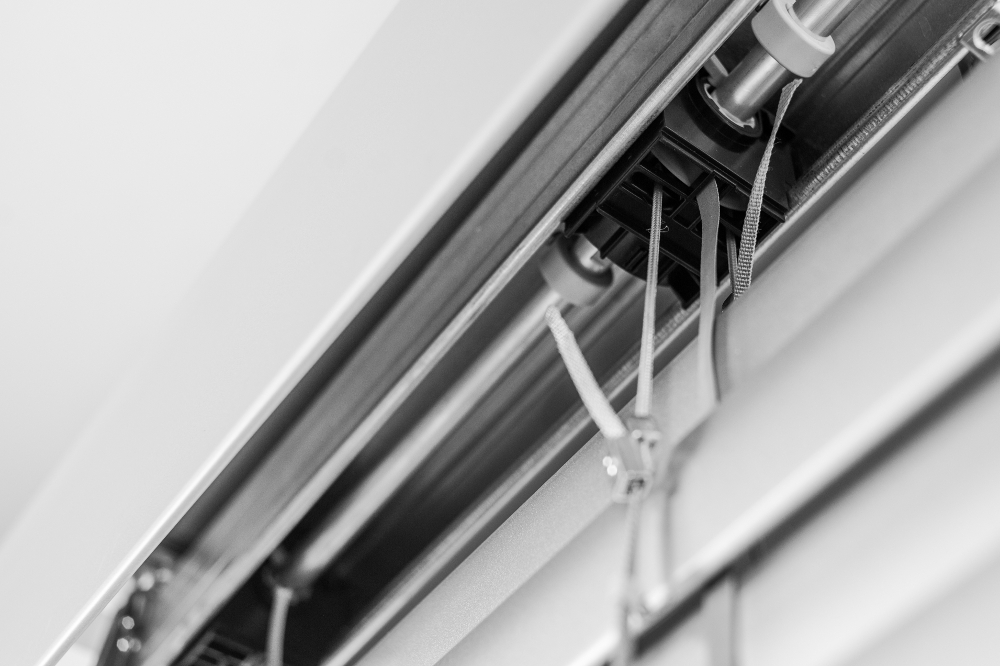

Z-90 EVB

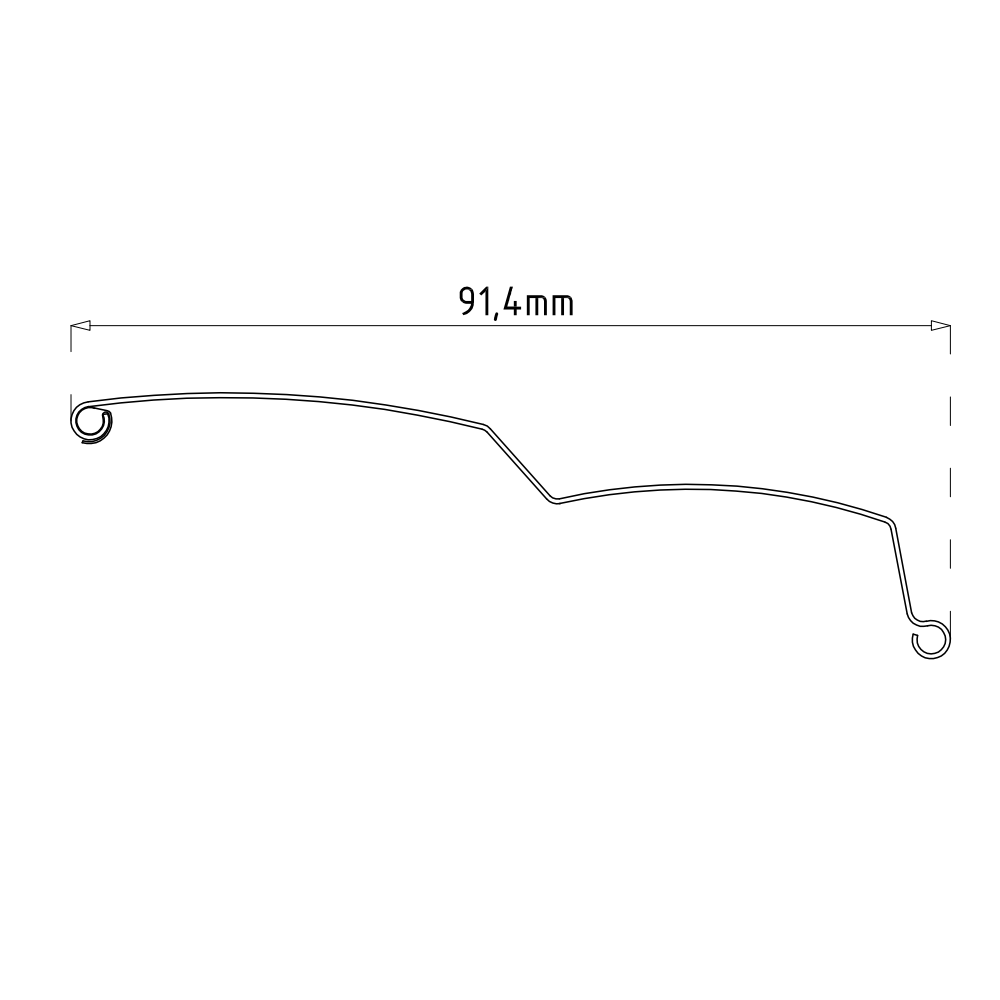

- adjoining Z-90 profile 0,42 mm thick
- Profile coated with poliester paint - COIL COATING technology
- steel guide pins
- ladder that connects slats - special Hagofix® system
- Blades work in the 90° range
Blind
- 58x56 mm galvanized head rail opened from the bottom
- Highest quality control tape - Texband® - 8 mm wide
- Bottom rail, guide channels made of extruded aluminum
- Reliable bearings that control the blind's operation
